Saratoga Garment Storage Conveyors

Storage-Veyor

Eska-Veyor

Mini-Max

Dip-Veyor

Assembly-Veyor

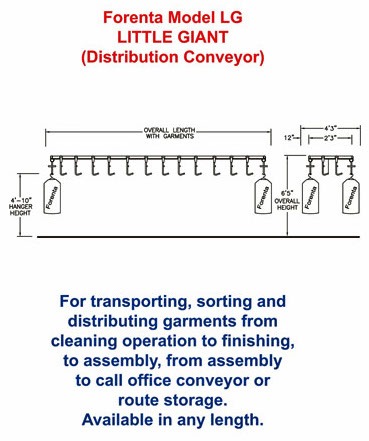

Little Giant

Misc/Options

Auto-Trol

Specifications

The (SA) Storage-Veyor is a space saving storage hanging conveyor - saving up to 60% of floor space. This conveyor effectively doubles a dry cleaner's hanging capacity, saving space, employee time, and money.

The Eska-Veyor offers flexibility for additional storage with the one station drop for placing and retrieving customer orders.

Double your hanging capacity with the Mini-Max as a shirt conveyor or dry cleaning garment storage conveyor.

The Dip-Veyor offers flexibility for additional storage with the one station drop for placing and retrieving customer orders.

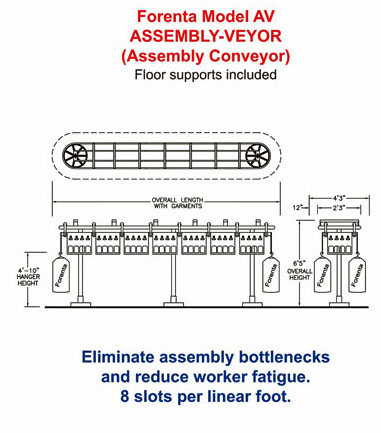

Saratoga's Model AV Conveyor saves space and reduces worker fatigue, while eliminating your assembly bottlenecks. Fast automatic assembly eliminates the miles of walking which exists in many slick rail assembly operations. Two foot control switches are standard. Four slots per 12" panel section, with clips for each slotted section to hold tickets.

  • Transporting, Sorting and Distribution
  • From finishing to assembly, from spotting to finishing
  • From assembly to call office conveyor
  • From steam tunnel to presses, etc.
  • Automatic or manual operation
  • Multiple locations can be keyed in
  • Automatically selects shortest route to garments
  • Program to retrieve locations in order of input or shortest route
  • Can be mounted on conveyor or counter
  • Can be used in conjunction with foot or hand switch
  • Two Auto-Trols can be used
  • Easy-to-read display
  • User-friendly - easy to program, easy to operate

Product Specifications:



  • Forenta-Saratoga Storage Conveyors now feature Direct Drive Motors with soft-start and stop. Cat drive available for high-rise models.
  •
  • Special sizes and configurations available.
  •
  • Hangers are adaptable to use numbers or bar codes.
  •
  • Conveyors include hand and foot switches for forward and reverse rotation. Auto-Trol Microprocessor available for automatic location of multiple orders.
  •
  • Solid steel frame with modular design allows for expansion as required.
  •
  • Electro-galvanized steel track, rust free, and die cast aluminum yokes with nylon ball bearing wheels insure smooth and quiet operation.
  •
  • Rotating parts use sealed ball bearings which minimize lubrication and lessen the possibility of lubricant leakage.
  •
  • Storage conveyors measure 52-inches wide with garments.
  •
  • 120-230 volt/50-60 cycle/1 phase, 1.8 amps with single drive, 3.6 amps with dual drives.
